RCR XJ13

Possibly the rarest Jaguar, the XJ13 was designed to win the 24-hour race at Le Mans. Powered by a 12-cylinder, dual overhead cam engine, mounted in the rear, with modern brakes and a heightened awareness of aerodynamics, it was well-prepared for an assault at LeSarthe. Penned by renowned aerodynamicist Malcom Sayer (who was also responsible for the Jaguar C-Type, the D-Type and the iconic E-Type), the XJ13 was the product of extensive experience with the design and manufacturing of aircraft during and after the war. With a then little-known David Hobbs driving, the prototype set an unofficial UK closed circuit lap record that stood for 32 years.

"The finest Jaguar that never was." – Andrew Frankel

But with another driver, and worn tires, that only prototype crashed heavily at the MIRA test track in early 1971, and was virtually destroyed. Transported back to the Jaguar factory, it sat, unloved, and forgotten, for years.

The original prototype was eventually restored, but never raced. It is valued at over $7 million.

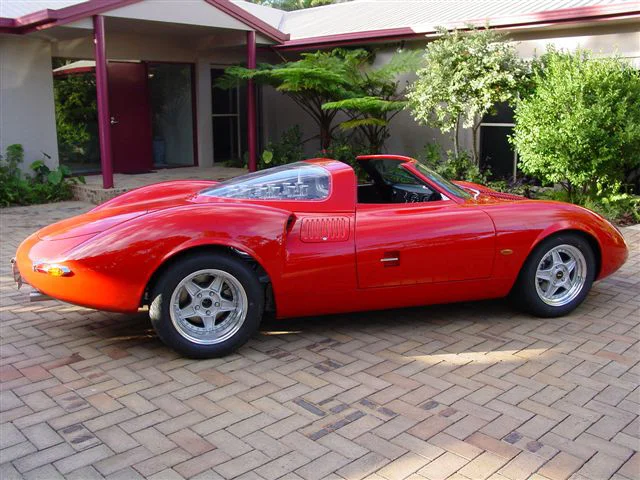

Now, however, the incredible lines, superb handling and DOHC V12 power can be obtained on a journeyman's salary, with the XJ13 from RCR.

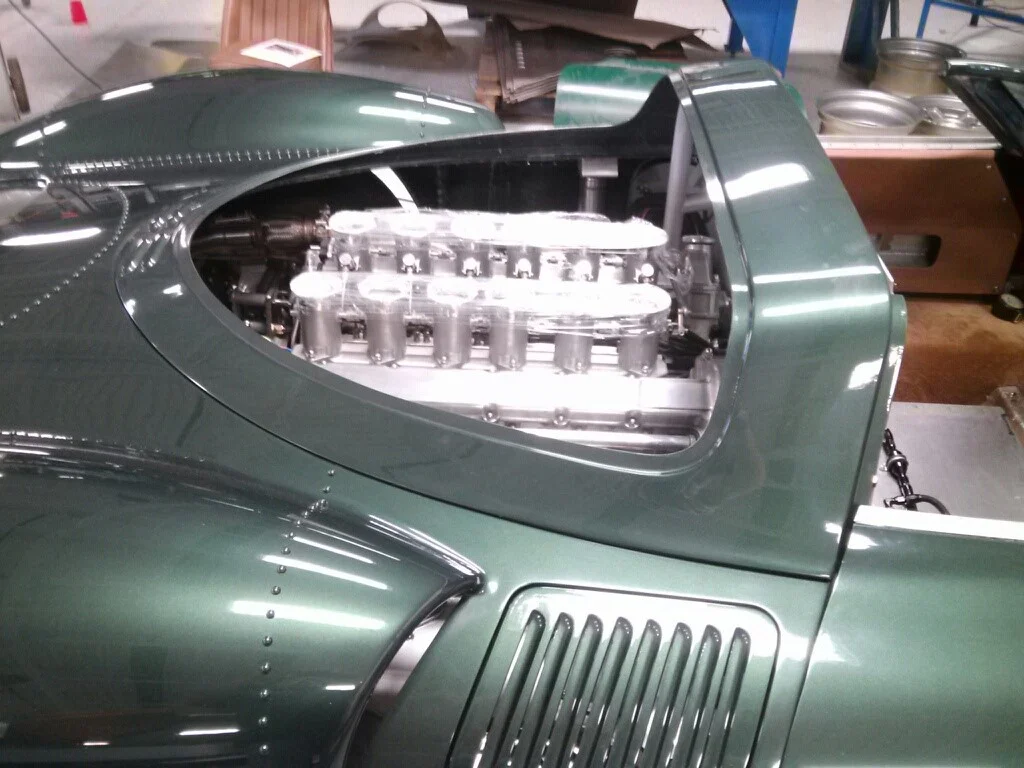

Updated with a fiberglass body (that can be obtained with "rivets" to make it look the original aluminum body), and riding on the signature RCR all-aluminum monocoque chassis and suspension with modern brakes, the XJ13 can even be fitted with a Jaguar V12 engine for the ultimate in originality.

Like all RCR cars, it can be ordered in any standard gelcoat color, and is available with several different wheel patterns. XJ13 cars in progress at the RCR Factory.

THE KIT

If you crave the vintage look- and sound- of a Jaguar XJ13 check out the details below and call to order. The icons have the following meaning:

Included
No Cost Option
Extra Cost Option
DescriptionStandardDeluxeDeluxe Plus
Chassis
Aluminum Monocoque Chassis Unit
Billet Aluminum Rear Chassis Brace
Engine Mounts Suitable for Jaguar V12
Aluminum Front and Rear Subframes
Left or Right-Hand Drive
DOM Street-Spec. Roll Hoop
Suspension
Billet Aluminum Front and Rear Suspension Uprights
Billet Aluminum Front Upper and Lower Control Arms
Billet Aluminum Lower Rear Control Arms
DOM Tubular Rear Suspension Radius Rod Links
Performance Tie Rods and Balljoints
QA1/Carrera Custom Aluminum Anodized Coilover Shocks
QA1 Double Adjustable Shocks - 18 Compression & 18 Rebound Adjustments (more info)
Set Coilover Springs
Set Performance Wheel Bearings
Assembled to Rolling Stage for Shipping Purposes
Steering
Custom Rack and Pinion Steering Unit
Collapsible Steering Column (D-Style)
Sealed Bearing Universal Joint
Splined Quick-Release Steering Wheel Adapter
Vintage-Style Steering Wheel
Brakes
Six-Piston Front Brake Calipers
Four-Piston Rear Brake Calipers
11.75" x 1.25" Vented Rotors
Custom Aluminum Rotor Hats
Parking/Hand Brake Assembly with Calipers
Stainless Steel Hard Brake Line System Complete with Brake Light Switch
Braided Flex Brake Lines/Hoses (Connects Calipers to Hard Lines)
Pedal Assembly
Triple Pedal Assembly Including Twin Master Cylinders for Brake System
Brake Balance Bar
Clutch Master Cylinder
Wheels
Halibrand Pin-Drive Wheels 15" x 8" Front, 15" x 10" Rear (more info)
BRM Pin-Drive Wheels 15" x 8" Front, 15" x 10" Rear (more info)
Halibrand Pin-Drive Wheels 17" x 8" Front, 17" x 10" Rear (more info)
BRM Pin-Drive Wheels 17" x 8" Front, 17" x 10" Rear (more info)
Custom Three-Piece Billet XJ13-Style Wheels (more info)
Tri-Wing Spinner and Adapter Package (Mounts 4 Pin-Drive Wheels) (more info)
Body
Nose, Tail, Cockpit, Doors, Bonnet and Trunk
Stainless Steel Body Alignment Pins
Rocker Panels
DOT Glass Windshield
Polycarbonate Headlight Covers
Polycarbonate Side and Rear Windows
Pair Stainless Steel Door Handles
Pair Bear Claw Door Latches
Fuel Filler Cap
Exterior Bullet-Style Chrome Mirrors
Lighting
Pair Front High Beam Headlight
Pair Front Marker Lights
Pair Rear Tailights
Pair License Plate Marker Lights
Electrical
Color Coded and Labeled Wiring Harness with Integral Fuse Box and Relays, 18 Circuits
Wiper Motor Assembly
Gauges
200 MPH GPS-Based Speedometer (more info)
8,000 RPM Tachometer and Sender (more info)
Fuel Level Gauge and Sender (more info)
Voltmeter (more info)
Oil Pressure and Sender (more info)
Coolant Temperature and Sender (more info)
Cooling and Fuel
Custom Aluminum Radiator 600HP Capable
Pair Electric Cooling Fans
Pair Coolant Tubes
Aluminum Fuel Tank
Drivetrain
Drive Axles and CV Joints
Shifter Assembly Including Shifter and Cables, Suitable for Center or Sill Shift (more info)
Engine/Transaxle Adaptor Plate (Many Options, Call for Details) (more info)
Transaxle (Many Options, Call for Details) (more info)
Interior
Pair of Aluminum Period-Style Seat Shells
Dash Panel
Integrated Heater and AC System
Exhaust
Exhaust System
Support
Instruction DVD
Support Line Contact Info

Pricing (Prices and Specifications Subject to Change Without Notice) $28,995 $39,995 $46,995

Specifications

  • Drive: Left-hand and right-hand drive
  • Overall Length: 189"
  • Width: 71"
  • Height: 39"
  • Wheelbase: 95"
  • Weight: 2,400 lbs
  • Weight Distribution: 45% front, 55% rear (typical, depends on drivetrain and other choices)
  • Ground Clearance: 4-5", depending on setup
  • Drivetrain Configuration: Mid engine
  • Fuel Tank Capacity: TBD gallons total
  • Suspension: Similar to original, but CNC billet aluminum uprights, control arms and braces
  • Chassis Construction: All-aluminum monocoque chassis, consisting of sheet and billet parts, completely TIG-welded
  • Body Construction: Hand-laid fiberglass body
